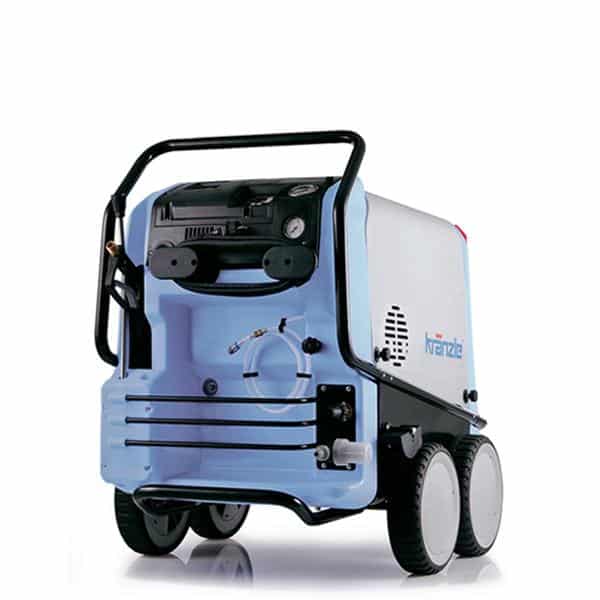

Kränzle e-therm 500 M 24 – Emission Free Electrically Heated Pressure Washer.

Kränzle e-therm 500 M 24 – Emission Free Electrically Heated Pressure Washer.

The Kränzle e-therm 500 M 24 – Emission Free Electrically Heated Pressure Washer is one of the new generation heavy-duty machines combining innovative engineering with maximum user convenience, economy and a long service life, even under very demanding operating conditions.

This latest addition to the range of big hot water Kranzle therm machines provides intensive cleaning power and lasting durability capable of demanding daily cleaning requirements.

Professional design matched with our existing innovative proven pump and motor technology offers exceptional quality and robustness and is available in both single or three phase power options.
The all-terrain chassis with wide rubber wheels is fitted with an easy to operate parking brake and offers two additional brackets for easy access storage of the gun and lance.

• Operating pressure adjustable bar / MPa: 30-100 / 3-10 (using 045 nozzle) or 30-160 / 3-16 (using 03 nozzle)
• Max. admissible overpressure bar / MPa: 215 / 21.5
• Connected load, V / ~ / Hz / A: 400 / 3 / 50 / 41.2
• Motor speed Rpm: 1400
• Water output l/min & l/h: 10 / 600 (using 045 nozzle)  8.6 / 516 (using 03 nozzle)
• Power Needed: 26.6 Wattage – 63 Amp
• Volume water tank l: 4
• Hot water output  °C: 47 (using 045 nozzle) / 52 (using 03 nozzle)
• Heating output kW: 24
• Power supply cable, m: 3
• Dimensions (L x W x H) mm: 1050 x 800 x 1015
• Weight (kg): 178

• All-terrain chassis, large wheels with wide solid rubber tyres
• Integrated hose reel with folding crank handle (optional)
• Electric instantaneous water heater
• Total stop system with delayed engine shut-off
• Safety shut-off
• Flow monitoring
• 4-fold safety system with overload protection
• 7.5 m connection cable with plug
• Stainless steel lance with flat spray nozzle
• Storage system for safety shut-off pistol and lances
• Eccentric parking brake
• Operating hours counter
• Cleaning agent suction
