Equipped with:
- 4 poles electrical motor (1450 RPM) with thermal protection and water cooling.
- Three ceramic pistons, brass full linear pump head with built-in by-pass valve.
- Low voltage and delayed Total Stop.
- Suction and delivery valves s/s.
- Vertical burner with high thermal efficiency steel coil.

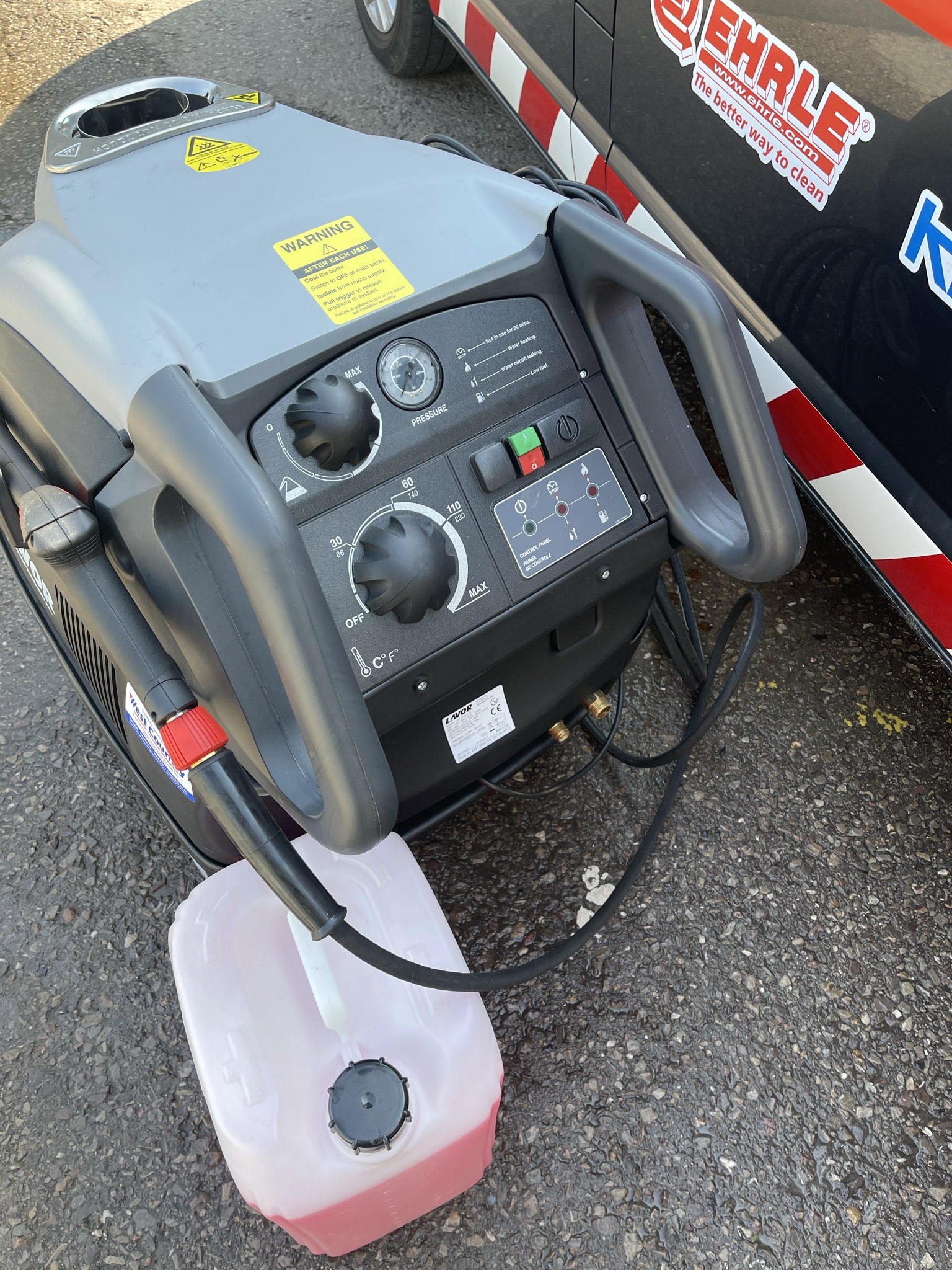

- Regulation Temperature gauge with high sensitive stainless steel sensor.
- Built-in Detergent tank for indirect suction.
- Auxiliary motor for burner.
- Heavy duty steel frame. Hose-reel with brake (6.608.0018).
Technical characteristics
Operating pressure / max | 150 bar bar |
Delivery rate | 900 l/h l/h |
Absorbed power / Voltage | 5500W – 400V/50Hz 3ph |
Motorpump type | MP4/ 1450 RPM |
Max inlet water temperature | 40 °C |
Max outlet water temperature | 140 °C |
Linear Pump:
The movement of the (3) pistons occurs through a system of connecting rods and crankshaft. The longitudinal axle of the pistons (placed at the same level or linear) is perpendicular to the motor rotation axle. It is more versatile to bear high delivery rates (from 21 l/ min) and it has a better self priming.
Motor low rotation speed:
The electric motor transfers the same number of revolutions to the pump. With a 4 poles motor there is a lower rotation speed of the components (1400 RPM in case of 50Hz or 1750 RPM in case of 60 Hz) granting longer pump life. Extending lifetime solution.
Low voltage and delayed Total Stop with intelligent shutdown:
To avoid quick and multiple start and shutdown of the motor/pump group whenever the guntrigger is pulled and released, this disposal delaysof about 15 seconds the machine shut down. Incase the machine is unused for more than 20minutes or there are leakages in the pressurecircuit, the machine shuts down automaticallyand completely: control panel power cut-off.Prevention, energy saving, top safety and pumplonger life.
